Die Making Steel Rule Manual Bridge Machine

The following is the introduction of high quality Die Making Steel Rule Manual Bridge Machine, hoping to help you better understand Die Making Steel Rule Manual Bridge Machine. Welcome new and old customers to continue to cooperate with us to create a better future!

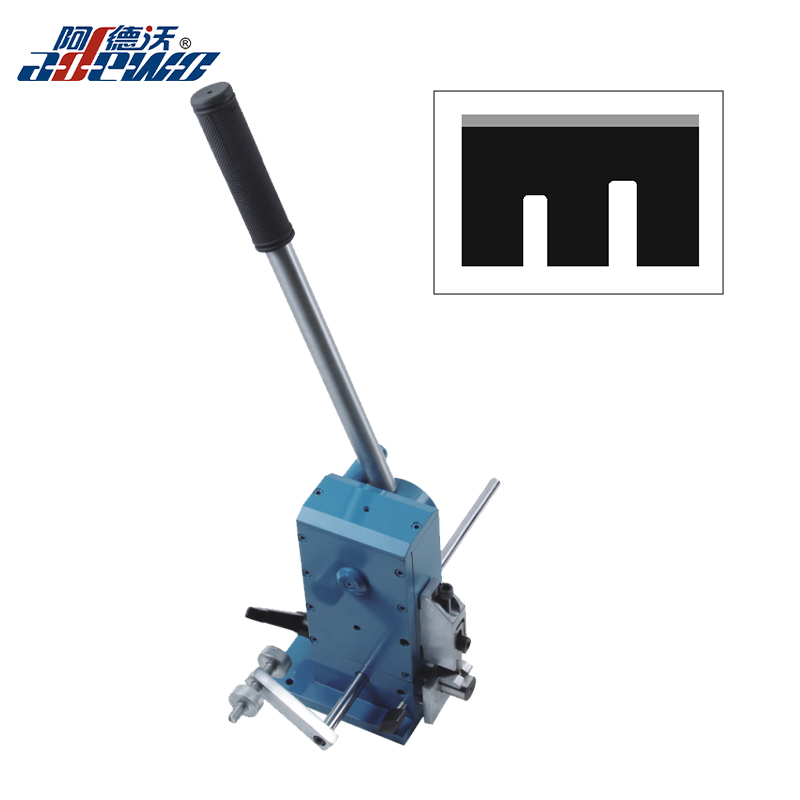

Picture of (ADW-22) Die Making Steel Rule Manual Bridge Machine for reference:

1.Field of Application & Work Stations

1.The (ADW-22) Die Making Steel Rule Manual Bridge Machine is designed for the sole purpose of making bridge(notch) for steel rules used for the die-cutting and creasing of paper, cardboard and corrugated board.

2. The (ADW-22) Die Making Steel Rule Manual Bridge Machine is a manual device, and does not carry magnetic or electric requirements.

2.Features

1. Standard (bridge)notch is 5mm with square shape.
2. Other sizes such as 6mm, 8mm & round shape are on request.
3. Max. Thickness of Steel Rules being notch: 2pt for cutting rules. Max dept : 20mm Adjustable

3.Technical Specifications

Model No.	ADW-22-2PT
Supported Rule Max. thickness	0.71mm（2pt）
Bridging height	5mm-20mm
Bridging width	3-6mm
Machine size	370x450x510mm
Net weight	12.6kg
Gross Weight	16kg



4.FAQ:

1.What manual equipments are necessary for a newly opened die making shop?
•Manual Bender Machine
•Manual Cutting Machine
•Manual Bridge Machine

2. Shipping method and delivery time?
•By air, around 7-10days
•By sea, around 30days

3.Any model of Manual Bridge Machine suits for 4pt steel rule?
Yes, model ADW-22-4PT Manual Bridge Machine is suits for  4pt steel rule.
