Multi-Functions Auto Bender Machine

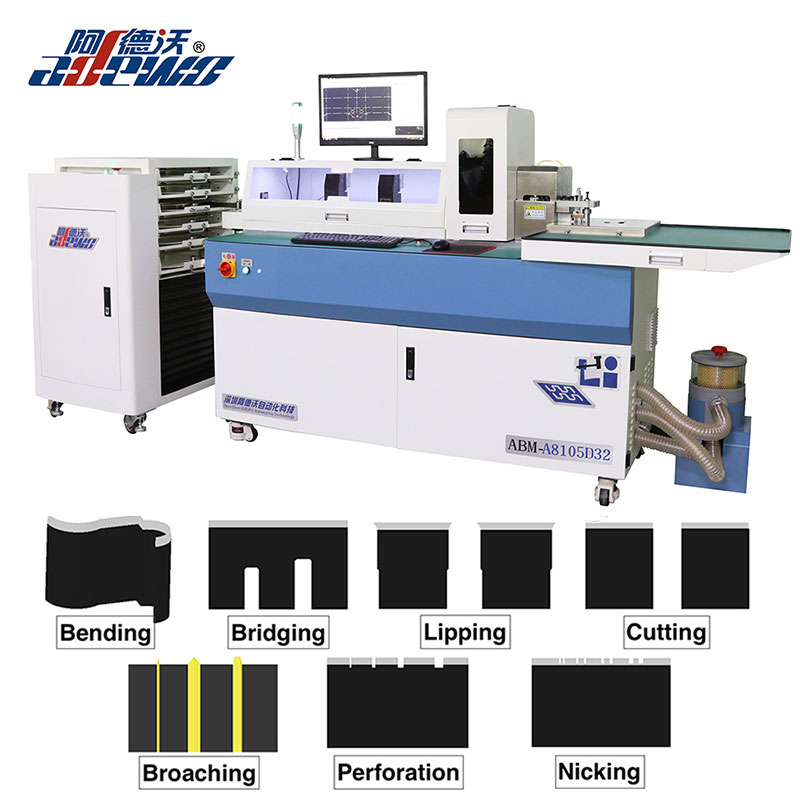

Picture of (ABM-A8105D32) Multi-Functions Auto Bender Machine for reference:


Product Features:

1.Multi-FunctionsAuto Bender Machine with Broaching,Bending,Bridge,Nicking,Perforation,Lipping and Cutting.All functions in one machine.


2.Punching Tools in thisMulti-Functions Auto Bender Machineis specially designed for high-requirement die boards such as cigarette cases,pill boxes,electronic dies and etc.Two sets Lipping&Cutting Tools customize based on the cutting rule bevel degree, to get high precisionseamless cutand Lip cut.


3.Multiple sets Broaching&Nicking: This Multi-Functions Auto Bender Machine with 4PCS Broaching saw blades,the width&depth of Broaching can be adjusted by the software. Different size Nicking done by 1PC Nicking Saw blade.



4.Double-clips Feeding:There are two feeding clips in this Multi-Functions Auto Bender Machine which for  improvesfeedingspeed and accuracy.



5.Smart Software: The independently developed software supports the formats of CAD files.User-friendly software interface, easy to operate.



6.Auto Rule Cassette with display: This Multi-Functions Auto Bender Machine with Auto Rule Cassette which can install 6 different types steel rule, humanized design, convenient to change different rule. It is independent, can be placed and moved at will.


7.Samples done by (ABM-A8105D32)Die Making Auto Bender Machine:


Product Technical Parameter:


Supported Rule Thickness(mm)

0.45,0.53,1.07,1.05mm(1pt,1.5pt,2pt,3pt)

Supported Rule Height(mm)

8-32mm

Min.Arc Radius of 90 Degree

0.4mm

Front Min.Bending Size

1.5mm

Back Min. Cutting Size

1.0mm

Feeding Precision

±0.03mm

Bending Flatness

±0.2mm/100mm

Bridge Width

5mm(can be customized)

Bridge Height

12-20mm(Adjustable)

Functions

Bending, Bridge,Lipping,Cutting, Broaching,
Nicking, Perforation

Cutting Methods

Lipping Cut,Seamless Cut

Optimal Graphic Format

DXF,DWG

Air supply

0.4-0.8Mpa

Power Supply

Single Phase,AC220V,13.6A,50-60Hz

Machine Total Power

3KW

Machine Weight

480KGS

Machine size

2800x930x1600(L×W×H)

H.S. Code

8462230000



FAQ:

1.What’s price term?

(1)FOB Shenzhen China

(2)CIF

(3)DDP



2. What’s payment term?

30% T/T as down payment, 70% T/T before delivery.



3.What about lead time?

7-10 working days.



4.How about installation and training?

English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com
